Complete Demonstration Systems

All Purchases will be directed off of this site and made via PayPal
Shipping charges will be calculated during PayPal checkout
PayPal Logo

Ferrocell products have a 2 Year Warranty against defects

Gif loop from movie made with LG Smartphone camera

35mm ultra-sensitive Ferrocell on lighted base with a 40mm ring of 12 bright white LED's
12V power adapter
(Universal for International buyers)

Two wands with 3 magnetic Poles

One 3.5mm Cube = North
+
One 3.5 x 12.7mm Bar = North and South

Cellphone stand

3 pieces slide together

Mini Ferrocell Demonstration Unit
Includes Cellphone Stand, Power Adapter and Magnets

$89.90 USD

Get a great display using your cellphone camera.
FEEL and SEE the magnetic potential in 3D!
Use your camera to zoom in for more detail and view larger images.
Take pictures and make movies easily.
Resolving sensitivity of this cell is 100 Gauss (.01 T), making this the most sensitive Ferrocell ever produced.
It's only 1mm thick and features my Ferrocell 509 formula for a bright and clear display.
NOT for use with strong or powerful magnets. Use the magnets provided or other small, weak magnets.
Setup and Use Instructions Included.

Actual products may be different than these photos show. Quality will be the same or better.

$89.90 +  shipping





Viewed in a dark room against a black background ( and a lot of dust!)
*untouched photos
Carbon Fiber Housing
100mm x 12mm
Premium Edge-Lit Ferrocell
in LED Ring Demonstration Unit

1/4 wavelength flat surface Grade 1 '509' Ferrocell mounted in a ring of 36 High intensity 5mm hand-wired LED's. Choose Red, Green and Blue or Red, Green and White or all White lighting.

Great 3-D depth and detail. 3-D printed Carbon Fiber plastic parts reduce static and dust accumulation. Designed for edge lighting experiments.

Includes one 1/2" (12.7mm) cube magnet, remote and controller for LED's plus a 100-240VAC 50-60Hz Universal Power supply.

(Order other magnets separately in Accessories).

$459.90
+shipping
LED COLORS

Viewed in a dark room against a black background
*untouched photos

100mm x 8mm Hybrid   Edge-lit Ferrocell Demonstration Unit

2mm Borosilicate combined with a 6mm BK7 gives this '509' Ferrocell ultra-sensitivity on the thin face and moderate sensitivity on the thick face. This combination results in a greater depth of view than other thin, sensitive cells.

3-D printed Carbon Fiber plastic parts reduce static and dust accumulation. Edge-lit with a ring of 36 White 5mm Hi-intensity hand-wired LED's. Includes universal power supply and 1"x1/2"x1/18" (25x12.7x1.5mm) Neo rectangle magnet. Light ring can be flipped for minimum/maximum magnetic cell sensitivity from below or above.

(Order other magnets separately in Accessories).

$299.90
+shipping

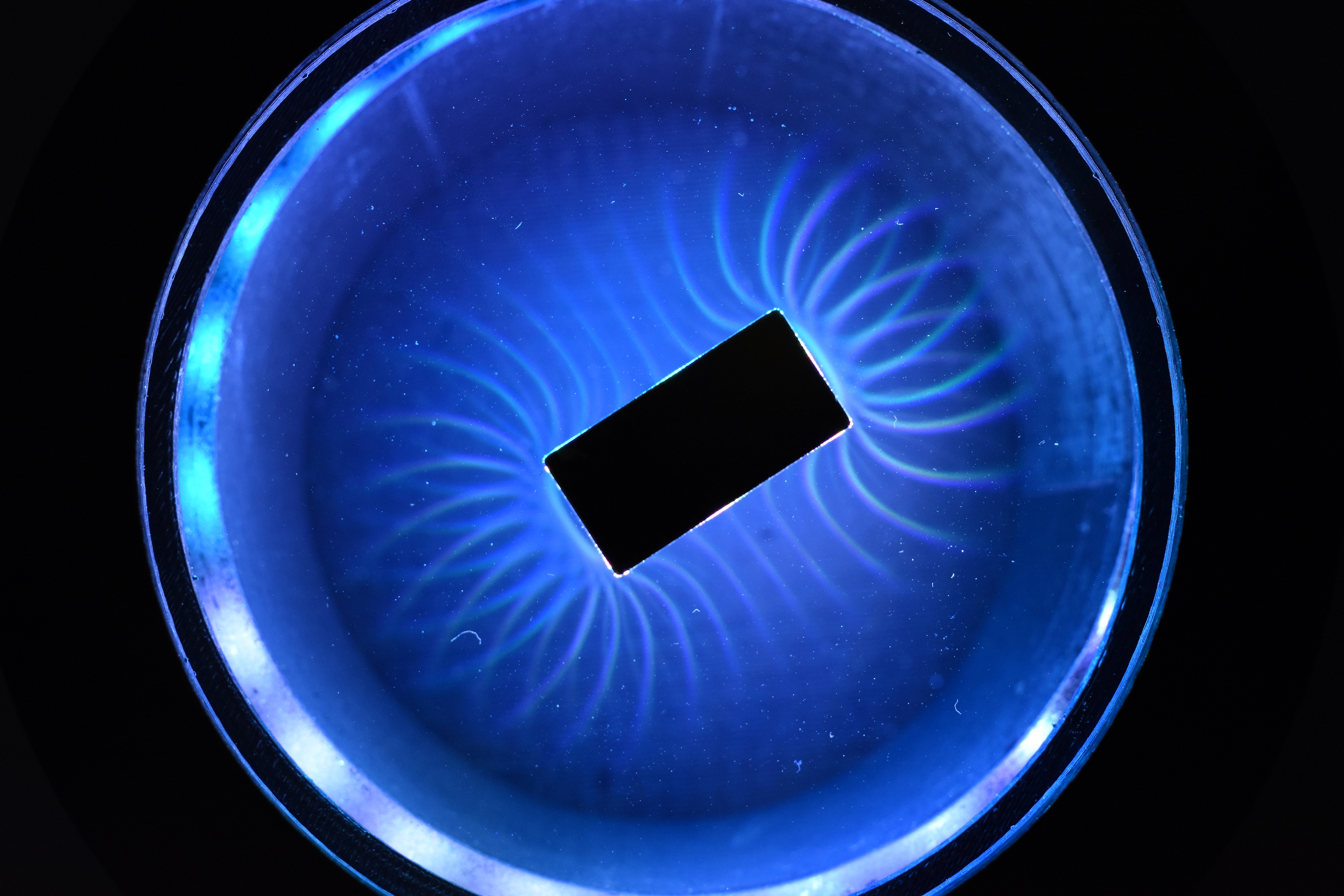

Viewed in a dark room with the bottom cover removed against a black background

*untouched photos
100mm x 4.5mm
Bottom-Lit Ferrocell Demonstration Unit

'509' Ferrocell in an ABS plastic housing with 21 Red/Green/Blue/ White Strip LED's.

Cell may be removed for use in other experiments. Bottom plate removable for 'Dark Chamber' use. Includes 100-240 VAC 50/60 Hz Universal Power supply, LED controller with multi-mode remote and now with a 3/8" (10mm) cube Neo magnet (not shown in pix).

(Order other magnets separately in Accessories).
$249.90
+shipping
Images taken in a dark room with
the bottom plate removed against a black background
*untouched photos

62mm Sensitive Bottom-Lit Demonstration Unit

62mm x 4mm Medium '509' Grade 2 Ferrocell mounted in an ABS plastic housing with 15 Red/Green/Blue/
White Strip LED's.
Cell may be removed for other experiments. Removable bottom cover for enhanced images in darkness using 'Dark Chamber'.
Bottom cover has plastic block for optimal viewing of magnet below Ferrocell. Includes multi-mode LED controller, 3/8" cube (10mm) N42 Neo magnet and 120-240 VAC 50-60Hz Universal Power supply.
(Order other magnets separately in Accessories).
$99.90
+shipping





or

*untouched photos

New Carbon Fiber Housing

62mm Handheld Viewer

Sensitive, easy to use. Bright and clear display. Includes plastic magnet stand for convenient below cell viewing

Includes 62mm x 4mm Medium grade '509' Ferrocell, two replaceable 1.5V AA Long-life Alkaline Batteries and your choice of either a 1" (26mm) Neo Ring or 3/8" (10mm) Neo Cube magnet.
3D Printed Carbon Fiber plastic parts reduce static and dust accumulation.
Select White or Green 21 Ultra-Bright 5mm LED's.
.
Power switch/removable battery cover.
(Order other magnets separately in Accessories).
$99.90
+shipping
LED Type:
Magnet Type

Actual products may differ from photos due to availability or improvement. Always the same or better quality.
